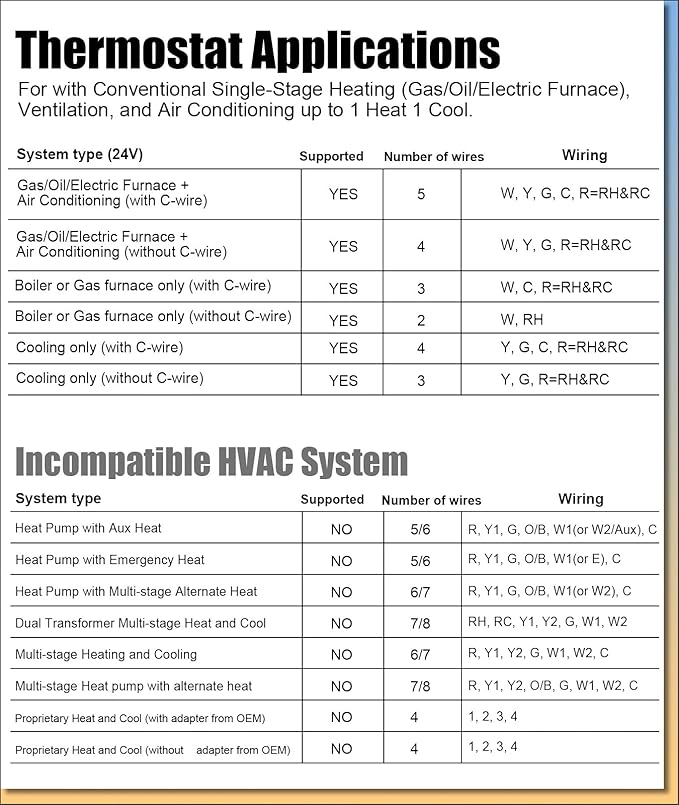

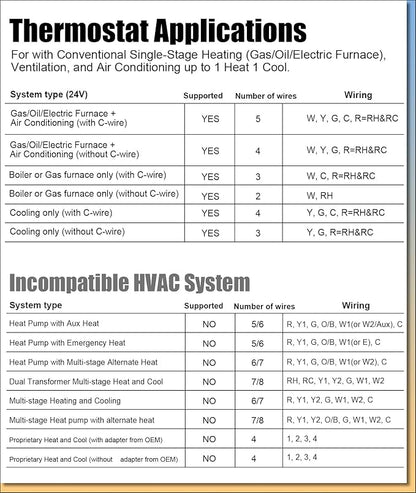

Compatibility: Works with standard single-stage HVAC systems (up to 1 Heat/1 Cool), including gas, oil, or electric furnaces, central air conditioners, and only 1H/1C heat pumps (no auxiliary heat).
Incompatible Systems：Will not function with: Multi-stage systems (1H/2C, 2H/2C, 3H/2C); HVAC heat pumps systems (2H/1C, 2H/2C, 4H/2C); PTAC units, 3-wire hydronic (hot water) systems, and dual-fuel/hybrid heating systems; Line-voltage systems (120-240V electric baseboard heat); Mini-split heat pump AC units; RV air conditioners (Mach & Roughneck series)

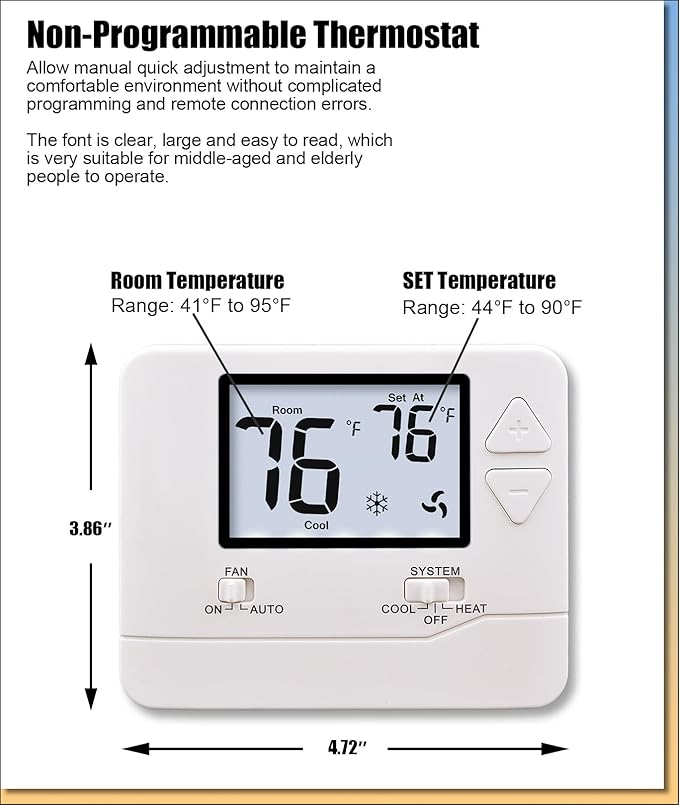

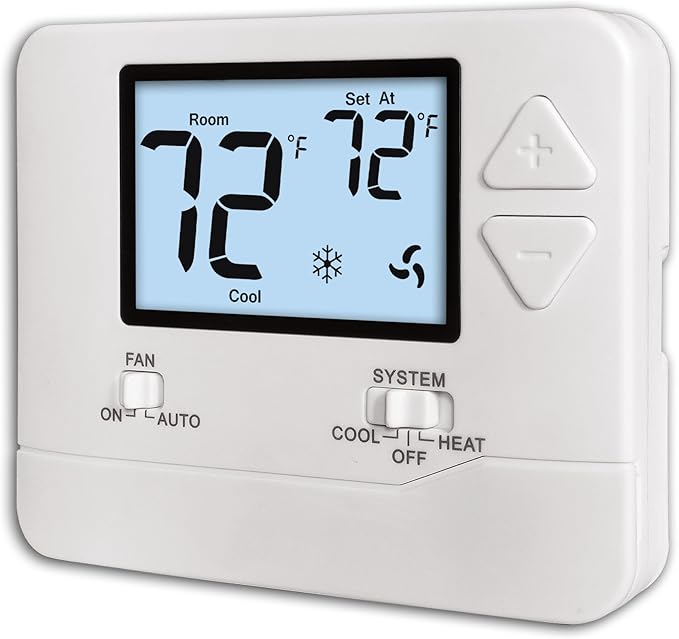

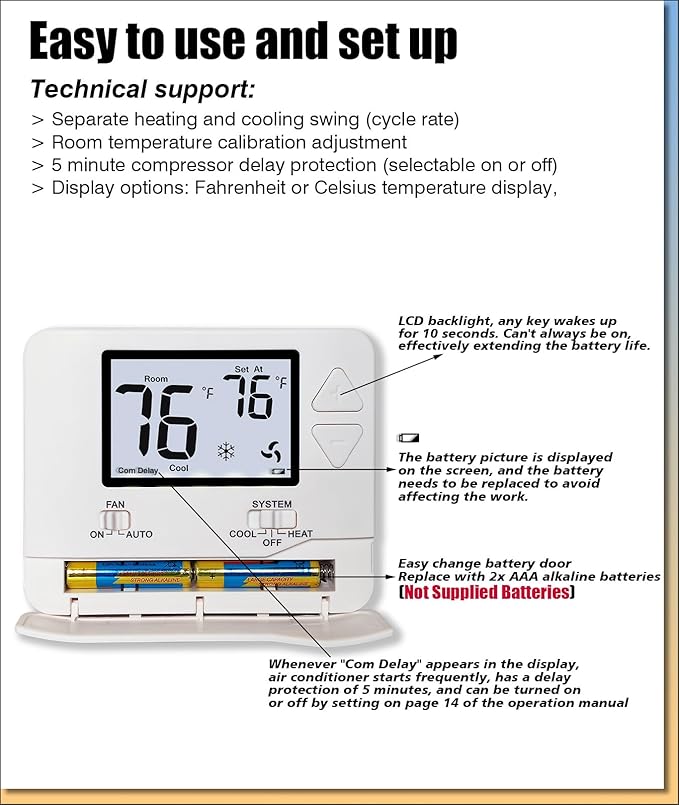

Display Features: Large LCD screen with white backlight; shows temperatures from 41°F to 95°F. Ensures easy readability in bright, dim, or low-light environments.

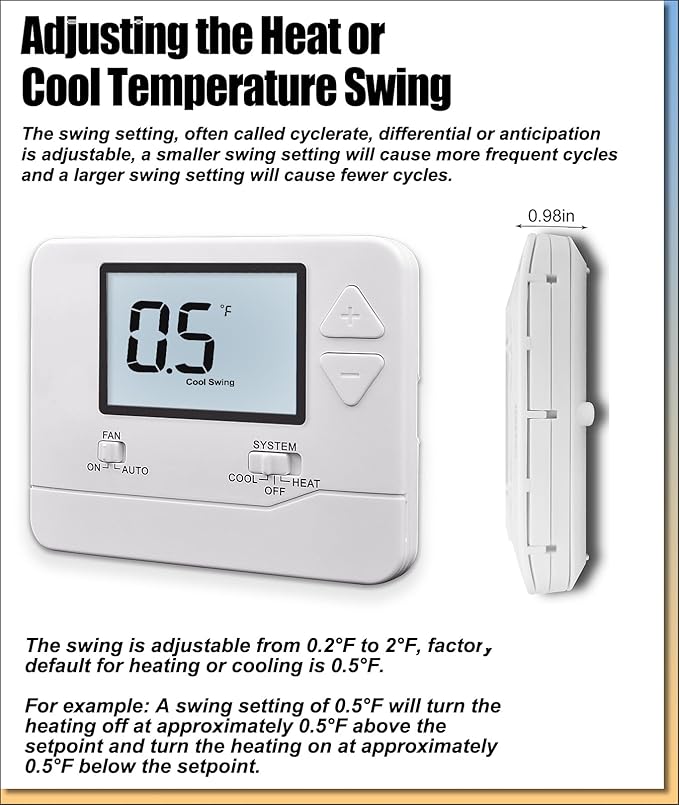

Temperature Control: Adjustable temp range: 44°F to 90°F. Features separate swing settings for heating and cooling to boost comfort and reduce unnecessary system cycling.

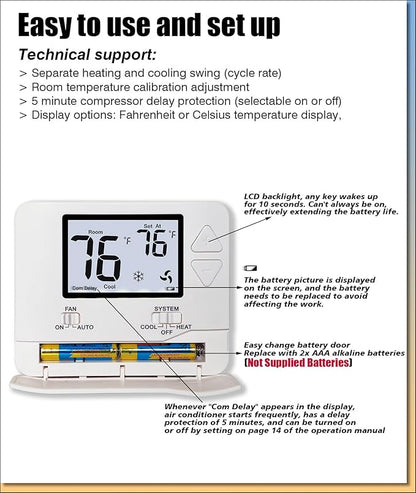

Power Options: Dual-power design: Operates on 24VAC (hardwired) or 2 AAA batteries (batteries not included). Offers flexible installation for different setups.

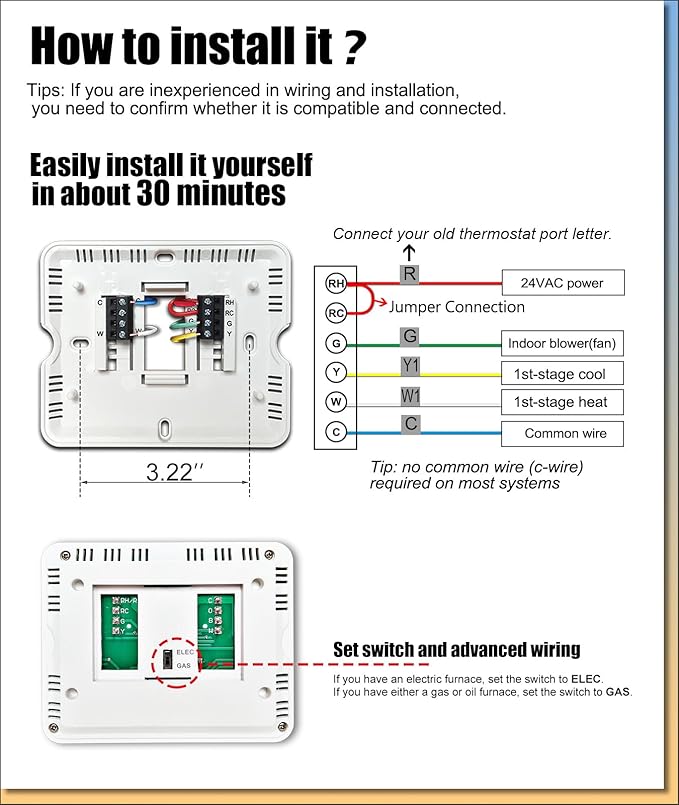

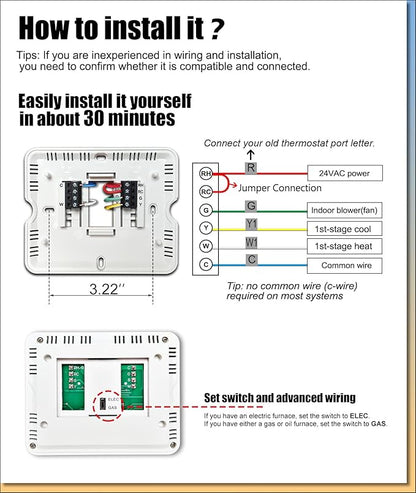

Installation Specs: Requires 2-5 wire setup. Includes built-in protections: 5-minute compressor delay (prevents short cycling). Also supports temperature calibration adjustment (-4°F to +4°F) for precision.
Overview
Brand : Heagstat
Model Name : Single-Stage Thermostat
Product Dimensions : 0.98"D x 4.72"W x 3.86"H
Controller Type : conventional single-stage systems
Special Feature : Separate Heating and Cooling Swing (Cycle Rate), Temperature display calibration (Fine adjustment -4F to 4F), Set fahrenheit or celsius units, Compressor delay 5-minute protection (set on/off).
Separate Heating and Cooling Swing (Cycle Rate), Temperature display calibration (Fine adjustment -4F to 4F), Set fahrenheit or celsius units, Compressor delay 5-… See more
